6900

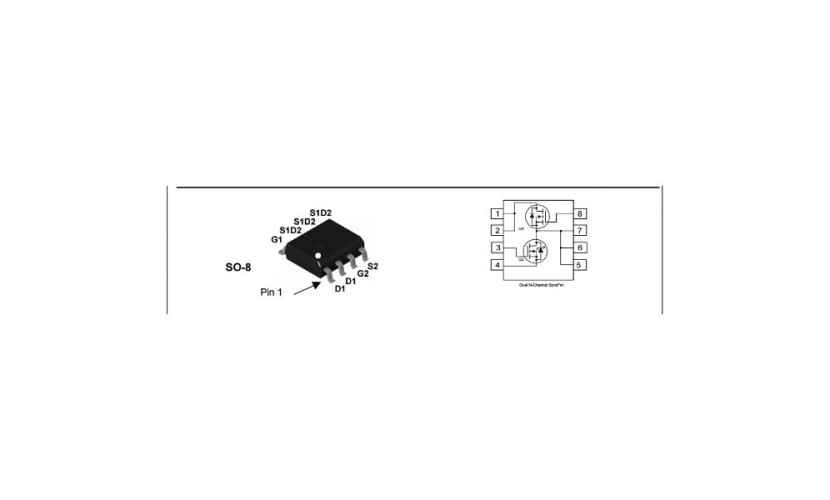

Dual N-Ch PowerTrench® SyncFET™ 6900ASMOSFET1 (Switch Q1): Optimized for low switching losses Low Gate Charge (11nC typical)VDS=30VID=6.9A @ VGS=10VMOSFET2 (Switch Q2): Optimized to minimize conduction losses icludes SyncFET Schottky body diodeVDS=30VID=8.2A @ VGS=10VThe FDS6900AS is designed to replace two single SO- 8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices. FDS6900AS contains two unique 30V, N-channel, logic level, PowerTrench MOSFETs designed to maximize power conversion efficiency. The high-side switch (Q1) is designed with specific emphasis on reducing switching losses while the lowside switch (Q2) is optimized to reduce conduction losses. Q2 also includes an integrated Schottky diode using Fairchild’s monolithic SyncFET technology.
